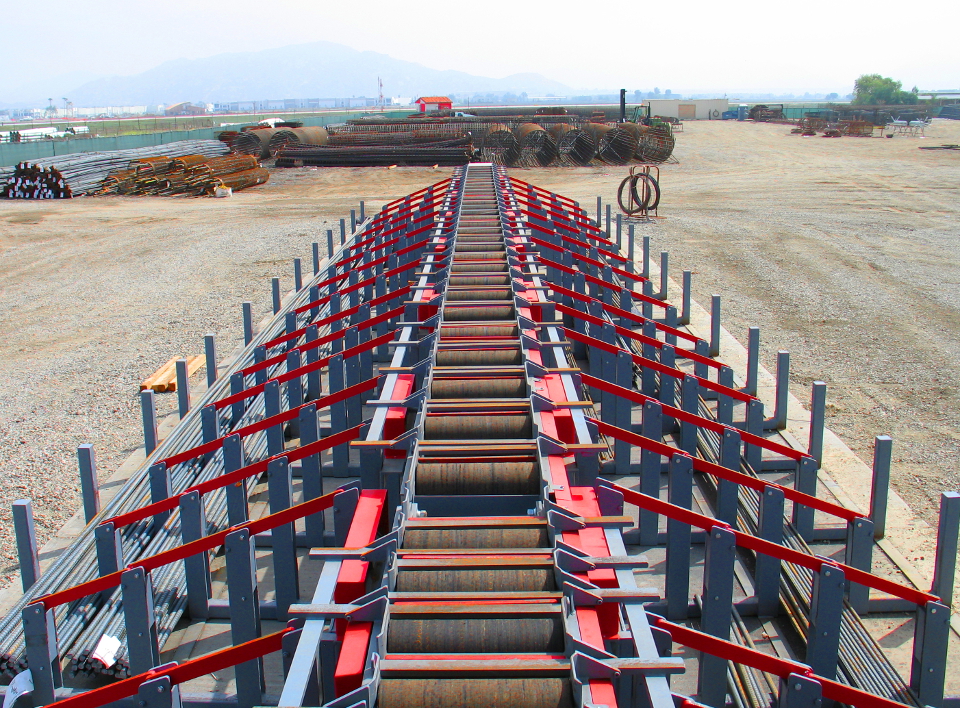

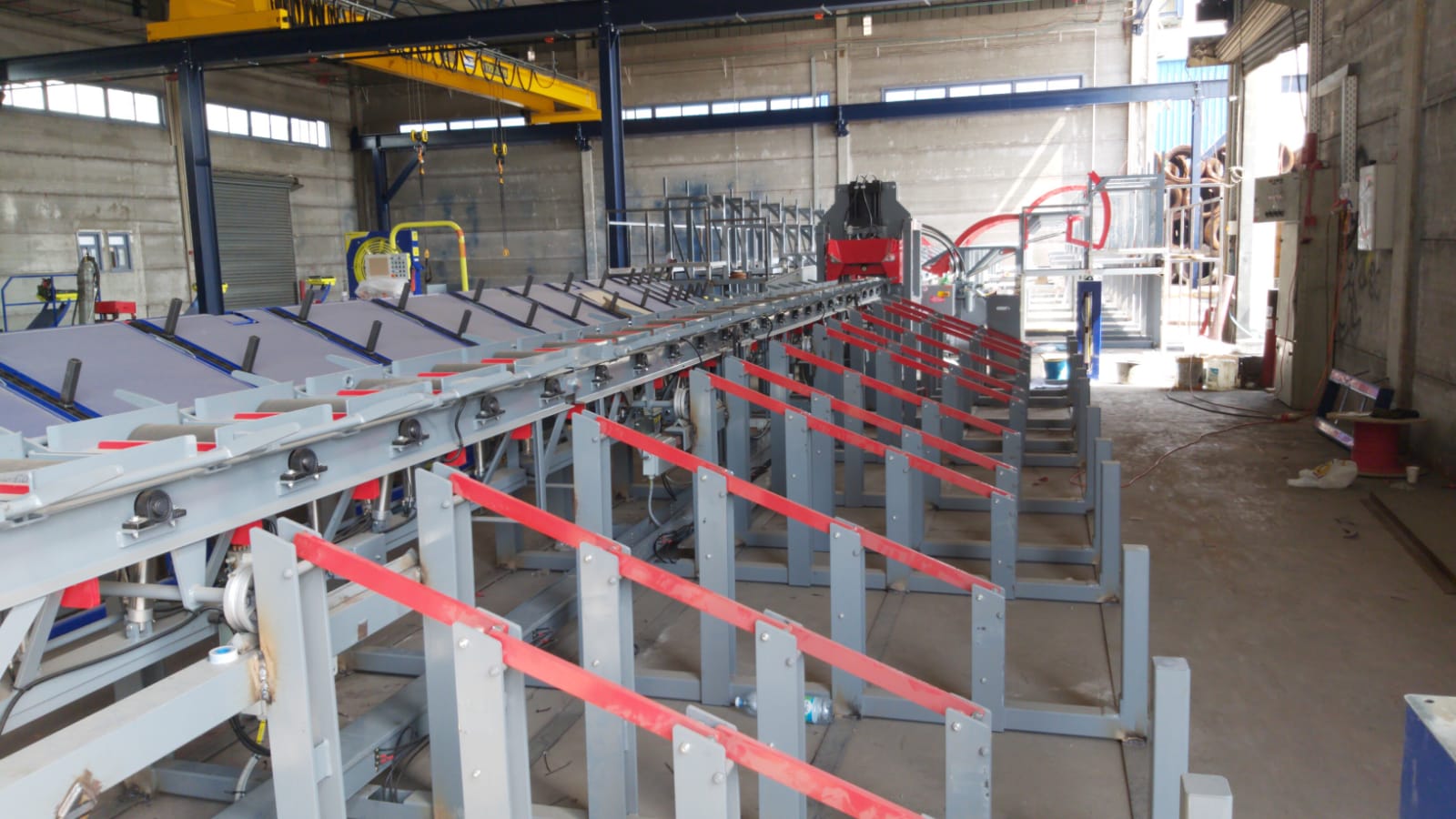

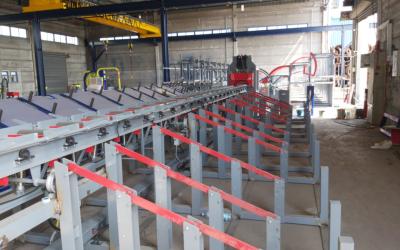

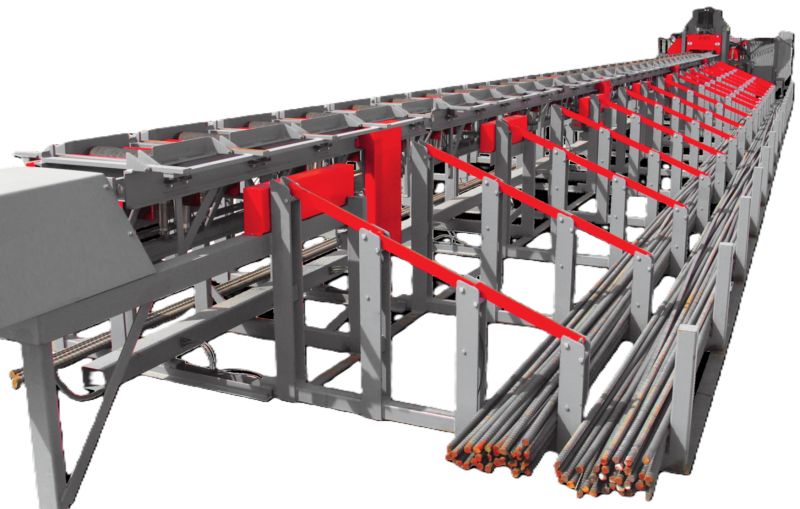

R-LINE 450 automatic rebar shearline

Straight forward, easy to operate shearline with high durability for bars from Ø8mm to Ø50mm

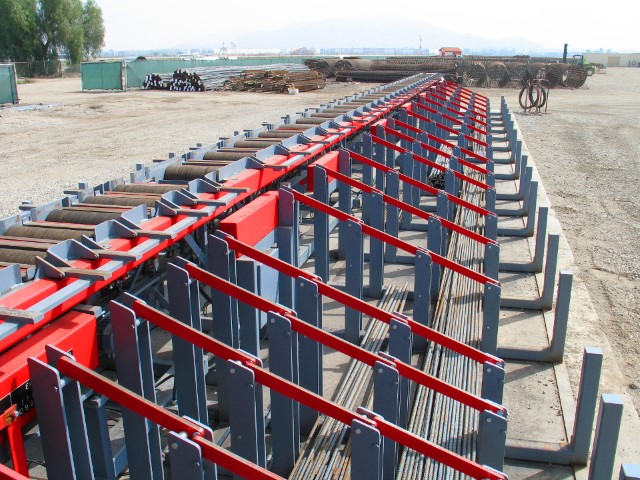

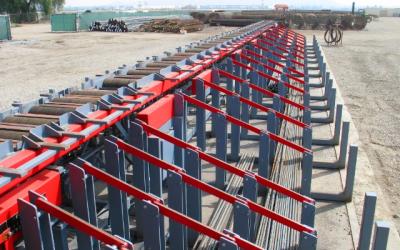

  • Heavy duty modular build storage rack with preload table, capacity 5 tons per level

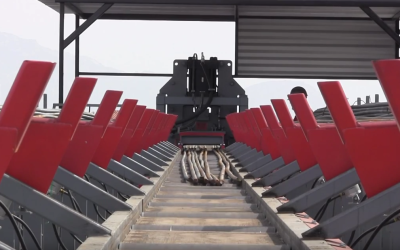

  • Feeding track with heavy duty coated rollers, width 450mm

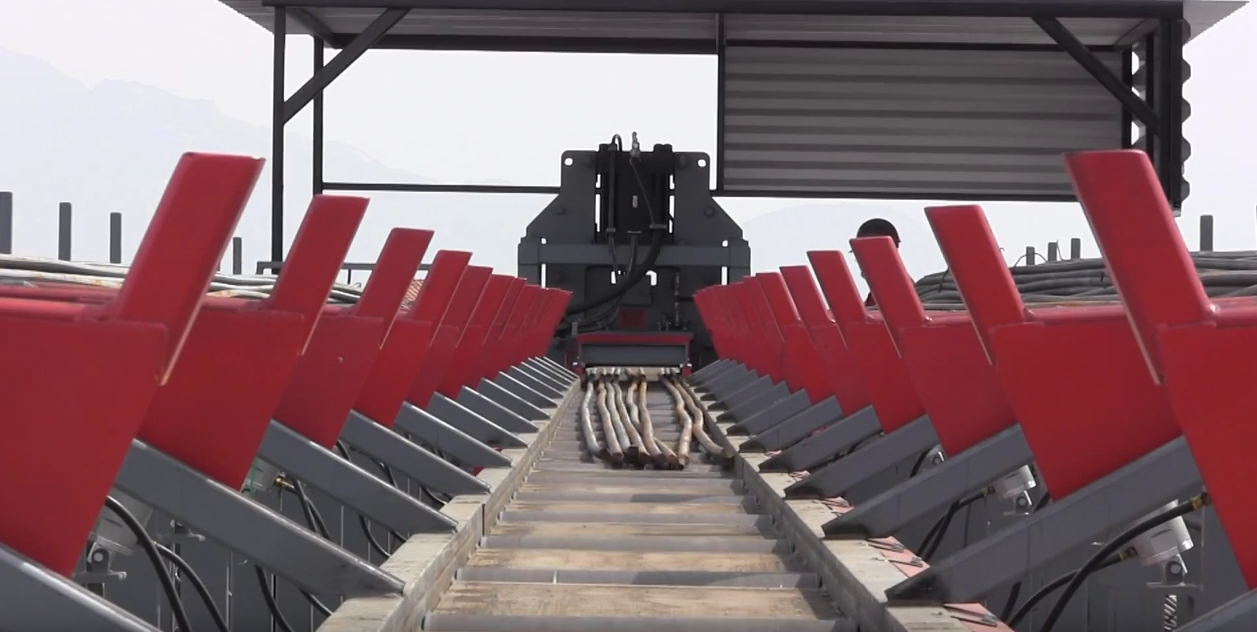

  • Heavy duty 611 hydraulic cutting machine (22kW) for cutting up to Ø57mm bars (#18)

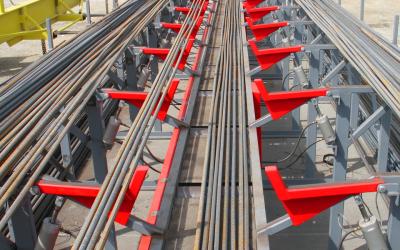

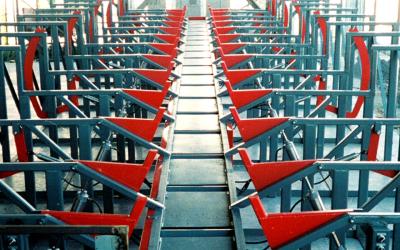

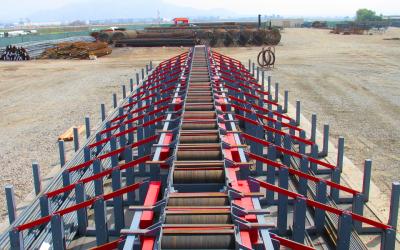

  • Measuring track with heavy steel kick-off arms spaced at 60cm

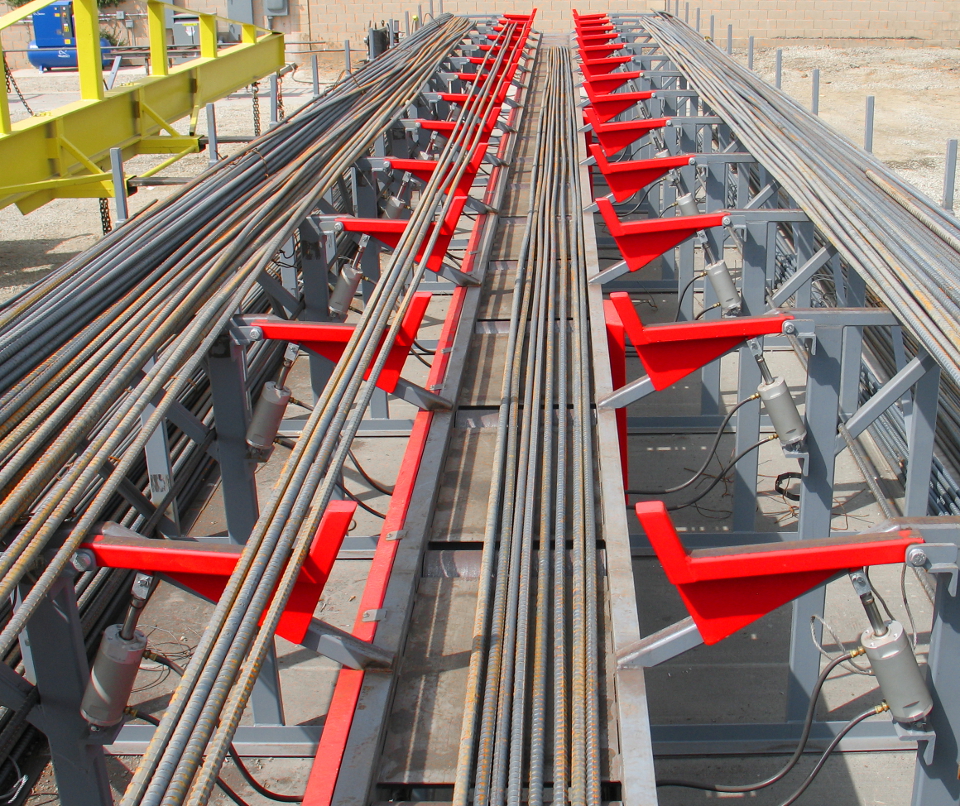

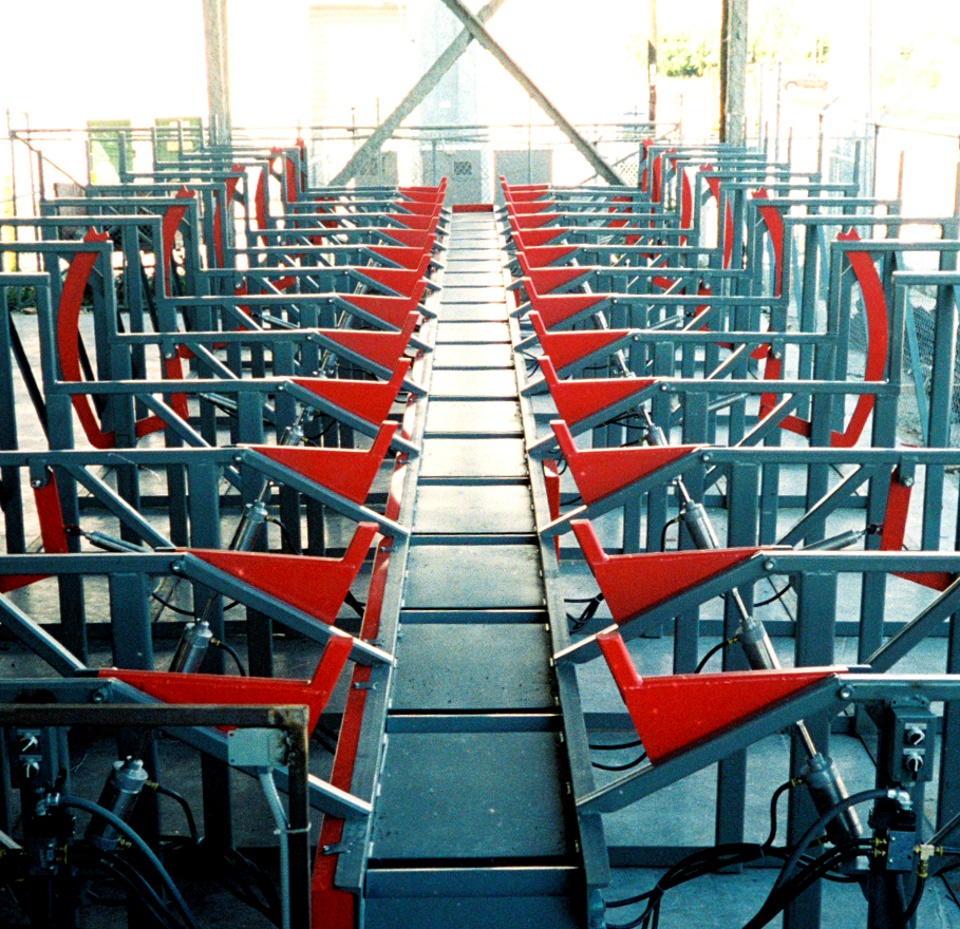

  • Collecting boxes with pneumatic operated levers on top provide easy entrance for unloading
  • Possible integration with automatic Rebar double bender DBS3-60N
Request information See more

R-Line cutting capacity

Bar diameter (metric) Ø10 Ø13 Ø16 Ø19 Ø22 Ø25 Ø29 Ø32 Ø36 Ø43 Ø57
Bar diameter (imperial) #3 #4 #5 #6 #7 #8 #9 #10 #11 #14 #18
Grade 60 37 35 27 23 19 17 10 8 8 4 2
Grade 80 37 35 27 23 19 12 10 8 6 4 2
Grade 100 37 35 27 12 8 6 4 4 4 1 1

Options

Logistic extensions

  • Extension of the central conveyor for additional collecting boxes or double benders.
  • Pocket systems for intermediate storage of rebar inside the machine, for better optimization of the cutting lists
  • Chain drag conveyors for buffering towards rebar double benders
  • Advanced ASA controller for downloading of BVBS date (cutting lists)

DBS3 Double bending line
